Which 3-Phase Transformer is Used for Step-Up? A Complete Guide

In modern power systems, step-up 3-phase transformers play a crucial role in improving transmission efficiency by increasing voltage levels for long-distance electricity transportation. Choosing the right type of step-up transformer is essential for ensuring safety, reliability, and performance. In this article, we explore the types of 3-phase transformers suitable for step-up applications, focusing on their characteristics, use cases, and how high-quality products from Junengda Electrical can meet industry demands.

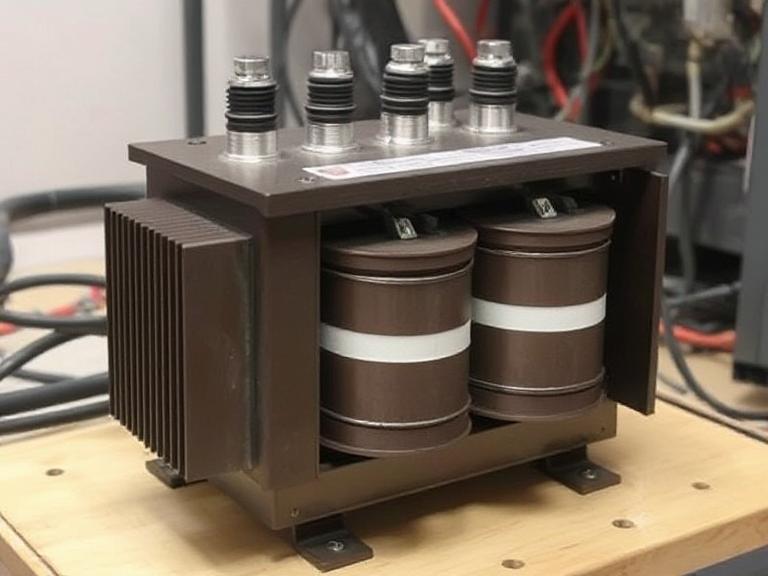

Which 3-Phase Transformer is Used for Step-Up

Table of Contents

What is a Step-Up Transformer?

A step-up transformer is a type of transformer that increases voltage from a lower to a higher level. It has a higher number of turns on the secondary coil compared to the primary coil, resulting in a voltage increase. These transformers are critical in power generation stations where low-voltage electricity needs to be transmitted over long distances at high voltage levels to reduce losses.

Basic Function

  • Increases voltage for efficient power transmission
  • Reduces energy loss during long-distance travel
  • Transfers energy with high efficiency

Role of 3-Phase Transformers in Power Systems

3-phase transformers are used extensively in industrial and utility-scale power systems. They are more efficient and reliable than single-phase systems, especially for high-load applications. A 3-phase step-up transformer is often installed between a generator and transmission line to elevate the voltage level before electricity is delivered to distant locations.

Benefits of 3-Phase Step-Up Transformers

  • Higher efficiency in handling large power loads
  • Compact design relative to three separate single-phase units
  • Suitable for continuous and heavy-duty applications

Types of 3-Phase Step-Up Transformers

There are several types of 3-phase transformers designed for step-up applications. Choosing the right one depends on factors such as voltage requirements, installation environment, and usage purpose.

1. Oil-Immersed Power Transformers

1. Oil-Immersed Power Transformers

These are traditional and most commonly used for step-up applications in substations and power plants.

  • Excellent cooling performance due to oil immersion
  • High capacity for voltage and current
  • Durable and long-lasting

2. Dry-Type Transformers

35 kV Three-phase Epoxy Resin Cast Dry-type Distribution Transformer

These use air instead of oil for cooling. Suitable for indoor installations or environmentally sensitive areas.

  • Safe and eco-friendly
  • Requires less maintenance
  • Ideal for schools, hospitals, and malls

3. Pad-Mounted Transformers

These are enclosed in locked metal boxes and installed on the ground, often used in urban or commercial areas.

  • Compact and tamper-proof design
  • Pre-installed for easy connection
  • Supports both step-up and step-down uses

4. Compact Substations

Also known as unit substations, these integrate transformers, switchgear, and protection in one package.

  • Used for urban and space-limited environments
  • Plug-and-play capability
  • Can include 3-phase step-up functionality

Applications of Step-Up Transformers

Where Are Step-Up Transformers Used?

  • Power generation stations – Boosting voltage for transmission
  • Industrial zones – Where large equipment needs higher voltage
  • Renewable energy systems – Solar or wind farms often need voltage elevation before grid integration

Importance in Grid Stability

  • Helps minimize transmission loss
  • Supports stable voltage across the grid
  • Maintains safe power flow and distribution

Junengda Transformers for Step-Up Needs

Junengda Electric

Junengda Electrical is a high-tech enterprise specializing in the research, development, and manufacturing of premium power transmission products. Recognized as a supplier to Fortune 500 companies, Junengda offers a wide array of 3-phase transformers suitable for step-up applications.

Recommended Junengda Products

Why Choose Junengda?

  • Advanced Production Facilities with cutting-edge testing labs
  • R&D-Driven Innovation powered by senior engineers
  • Customer-Centric Approach with tailored solutions
  • Global Supply Network ensuring fast delivery and support
  • Comprehensive After-Sales Service backed by expert teams

“Electricity Drives the Future, Service Achieves Excellence.” Junengda stands by this philosophy with top-tier electrical solutions globally.

How to Choose the Right Step-Up Transformer

Key Considerations

  • Voltage Requirement: Know your input and output voltage ranges.
  • Environment: Outdoor (oil-immersed or pad-mounted) vs. indoor (dry-type).
  • Space Constraints: Use compact substations if area is limited.
  • Load Capacity: Choose a transformer that matches your peak load usage.
  • Compliance: Ensure transformers meet local grid codes and safety standards.

Pro Tip

Always consult with transformer experts like Junengda Electrical to ensure the product is optimized for your unique application scenario.

Summary Table: Key Takeaways

Transformer Type Cooling Method Ideal Use Step-Up Suitability
Oil-Immersed Transformer Oil High-power transmission Excellent
Dry-Type Transformer Air Indoor environments Good
Pad Mounted Transformer Oil Urban and public grid access Very Good
Compact Substation Mixed Integrated systems High
3-Phase Transformer Depends on type Heavy-duty industry Optimal
