Overview of 500 KVA Transformers
The 500 kVA transformer is a medium-sized power distribution unit widely used across industrial, commercial, and renewable sectors. It serves as a critical element in transferring electrical energy from the distribution grid to internal building systems or machinery with stable voltage and high efficiency.
Technical Specifications of 500 KVA Transformers
500 kVA transformers can vary by manufacturer and application. Below are the common technical specifications:
- Rated Capacity: 500 kVA
- Frequency: 50 Hz / 60 Hz
- Primary Voltage: Up to 38.5 kV
- Secondary Voltage: Common options include 400V, 415V, or customized based on demand
- Cooling Method: ONAN (Oil Natural Air Natural) or ONAF (Oil Natural Air Forced)
- Insulation Class: Class A or F
- Winding Material: Copper or Aluminum
- Protection Rating: Typically IP44 to IP54 for outdoor use
Typical Dimensions of 500 KVA Transformers
Although the dimensions can vary depending on design (dry-type, oil-immersed, pad-mounted), here are common dimension ranges:
- Height: 1400mm – 1700mm
- Width: 1000mm – 1300mm
- Depth: 800mm – 1200mm
- Weight: 1000kg – 1500kg
Note: Pad-mounted transformers generally come in fully enclosed cabinets that may have slightly larger footprints for cooling systems and protective housing.

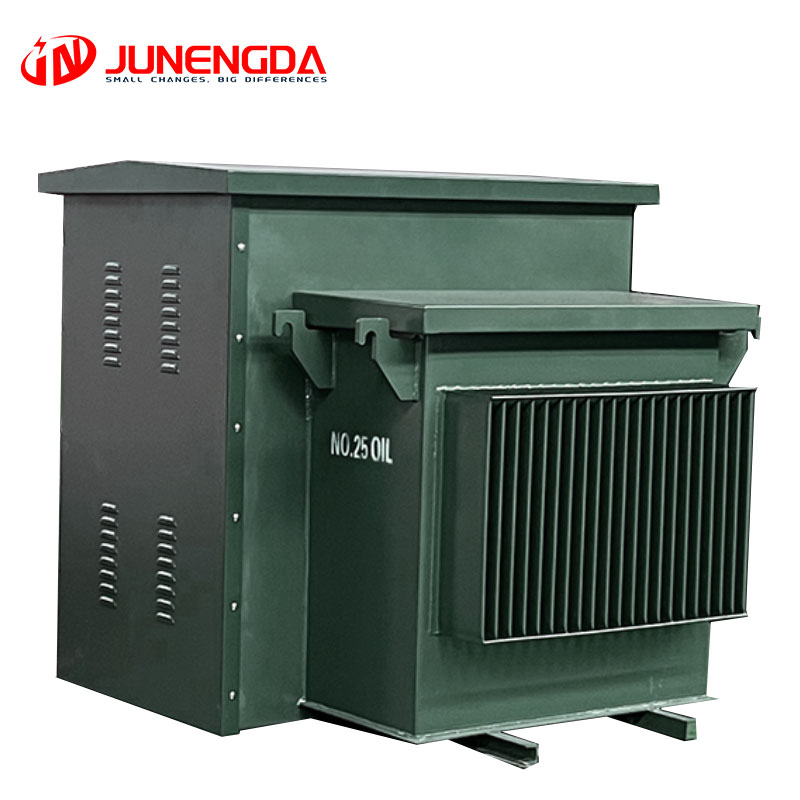

Junengda 500 KVA Pad Mounted Transformer
Junengda Electrical offers a 500 kVA Pad Mounted Transformer designed for efficient, compact, and reliable power distribution. This transformer is suitable for urban substations, industrial settings, and renewable energy installations.
Main Specifications:
- Model: Junengda 500 kVA Pad Mounted Transformer
- Rated Frequency: 50Hz / 60Hz
- Maximum Operating Voltage: 38.5kV
- Capacity Range: 150 kVA to 2500 kVA (Customizable)
- Service: OEM / ODM solutions available
Compliance Standards:
- International: ANSI C57, IEC 60076
- National: GB 1094, GB 17467-2010, GB/T 14048.1, GB 4208
Export Regions:
- North America
- East Asia
- Southeast Asia
- Middle East
Applications of 500 KVA Transformers
500 kVA transformers are used in a wide range of industries and infrastructure projects. Key applications include:
1. Industrial Power Distribution
- Factories with heavy machinery
- Steel mills, chemical plants, and mining sites
- Port terminals with crane systems
2. Commercial Buildings
- Office buildings and complexes
- Shopping centers and malls
- Hospitals and universities
3. Renewable Energy Systems
- Solar PV substations
- Energy storage stations
- Wind farm collection points
4. Temporary and Mobile Power
- Construction sites and infrastructure development
- Exhibition centers and temporary pavilions
International and National Compliance Standards
Junengda’s 500 kVA transformer is manufactured in compliance with the following standards, ensuring global compatibility and safety:
- ANSI C57: North American standard for electrical transformers
- IEC 60076: International standard for power transformers
- GB 1094: General Chinese standard for transformers
- GB/T 14048.1: Low-voltage switchgear and controlgear
- GB 17467-2010: Chinese standard for packaged substation transformers
How to Choose the Right 500 KVA Transformer
Selecting the right transformer depends on several critical factors:
- Load Type: Determine whether the load is continuous, intermittent, or fluctuating
- Installation Environment: Indoor vs outdoor; temperature range; humidity
- Voltage Requirements: Confirm primary and secondary voltage compatibility
- Cooling Needs: Choose air-cooled or oil-immersed based on maintenance and performance
- Space Constraints: Pad-mounted transformers save space with integrated cabinets
- Standard Compliance: Ensure the product meets regional safety and operation codes
Junengda’s OEM/ODM services also allow you to customize the transformer’s size, rating, and accessories based on project needs.
Summary Table
| Feature | Details |
|---|---|
| Rated Capacity | 500 kVA |
| Frequency | 50Hz / 60Hz |
| Max Voltage | 38.5kV |
| Cooling Type | Oil-immersed (ONAN or ONAF) |
| Typical Dimensions | 1400mm H × 1100mm W × 900mm D (varies by type) |
| Compliance | ANSI C57, IEC 60076, GB 1094, GB 17467-2010 |
| Applications | Industry, commercial buildings, renewable energy, construction |
| Customization | Available (OEM/ODM by Junengda) |
| Export Markets | North America, East Asia, Southeast Asia, Middle East |
