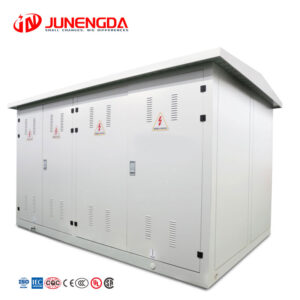

- 2000 kva compact substation overview>>>
A 2000 kva compact substation is a kind of substation that combines high-voltage switchgear, transformers, low-voltage switchgear, etc. in a compact enclosure. Due to its advantages such as flexible combination, convenient transportation, mobility, easy installation, short construction period, low operation cost, small floor space, no pollution, and maintenance-free, it has attracted extensive attention.
- 2000 kva compact substation Features>>>
- Junengda Electric is committed to improving the human electricity consumption environment and manufacturing advanced power distribution equipment.
- Execution standards: IEC622271-212/EN50532/IEC62271-202/IEC60529/IEC61330
- Rated AC frequency 50Hz/60HZ, maximum operating voltage to 35KV, maximum operating current to 5000A
- Main sales destinations: Japan, South Korea, Singapore, Vietnam, Thailand, Malaysia, Germany, France, the United Kingdom, Italy, Spain, the United States, Canada, Mexico, Chile, South Africa, Egypt, Saudi Arabia, the United Arab Emirates
- Main application scenarios: commercial areas, residential areas, urban road lighting, industrial parks, mining enterprises, wind farms, solar power plants, petrochemical projects
- 2000 kva compact substation advantage>>>
- Leading technology: fully enclosed and fully insulated.
- High mechanical strength and good heat dissipation performance: The shell is sturdy, and the busbar system adopts high-quality three-phase tin-plated busbar copper bars.
- Convenient installation: With an overall prefabricated design, the assembly and debugging are completed in the factory. Only simple installation and connection work are required on site, which greatly shortens the construction period.
- Small floor space: Compact structure and small volume can effectively save installation space, making it suitable for places with limited space such as city centers, commercial areas, and residential communities.
- High reliability: Using high-quality electrical equipment and advanced manufacturing processes, it has good electrical and mechanical properties and can operate stably in harsh environments.
- No-load loss: 1.8-2.5 kW，Load loss: 12-16 kW，Efficiency: 97.5%～98.5%，Service life: 25-35 years
2000 Kva Compact Substation Transformer (FAQ)
Q1: What is a 2000 kVA Compact Substation?
A: The 2000 kVA Compact Substation is an integrated power distribution solution designed for medium-scale electricity demands. It combines high-voltage switchgear, transformers, low-voltage distribution units, and an intelligent monitoring system within a compact enclosure. It is suitable for urban power distribution, industrial facilities, commercial buildings, and renewable energy projects.
Q2: What are the advantages of a 2000 kVA compact substation compared to a conventional substation?
A:
– Space-saving: 40%-60% smaller footprint, ideal for areas with limited land resources.
– Rapid deployment: Factory-preassembled and tested, reducing on-site installation time by 70%.
-Smart management: Supports remote monitoring and automated control, enhancing operational efficiency.
– High reliability: Fully enclosed structure with IP43 protection rating, suitable for harsh environments.
Q3: What are the main components of the 2000 kVA compact substation?
A:
– High-voltage unit: Load switches, fuses, surge arresters.
– Transformer: 2000 kVA oil-immersed or dry-type transformer (optional).
– Low-voltage unit: Circuit breakers, metering devices, capacitor compensation cabinets.
– Intelligent control system: SCADA interface, temperature/humidity sensors, fault alarm modules.
Q4: What is the voltage range of the 2000 kVA compact substation?
A:
– High-voltage side: 11 kV / 33 kV (customizable).
– Low-voltage side: 400 V / 690 V (three-phase four-wire system).
Q5: What is the efficiency of the 2000 kVA compact substation? Does it support energy-saving modes of the 2000 kVA compact substation?
A: Transformer efficiency ≥98% (per IEC 60076 standards). The low-voltage unit offers optional smart capacitor compensation (power factor ≥0.95) and supports “nighttime light-load” energy-saving mode.
Q6: What is the protection rating and corrosion resistance of the 2000 kVA compact substation?
A:
– Protection rating: IP43 (enclosure), IP54 (internal electrical compartments).
– Corrosion resistance: Galvanized steel with powder coating, suitable for C4-level corrosive environments (e.g., coastal or industrial areas).
Q7: Does it require special maintenance of the 2000 kVA compact substation?
A: Routine inspections (e.g., oil level, connection integrity) are recommended every 6 months. The smart system provides real-time alerts for anomalies. Dry-type transformers are maintenance-free; oil-immersed transformers require periodic oil testing.
Q8:How long is the service life of the 2000kva compact transformer station?
A;Typically, when designed, utilized, and maintained appropriately, its expected lifespan can reach 20-30 years.
JUNENGDA ELECTRIC – FREQUENTLY ASKED QUESTIONS (FAQ)
- Company Overview
Q: Is Junengda Electric a manufacturer?
Yes, we are a professional electrical product manufacturer with our own production base and R&D team. Factory visits are welcome—please contact us to arrange an inspection (details in “About Us”).
- Delivery Time
Q: What is the standard lead time?
Standard delivery takes 15–30 days (varies by order complexity/quantity). Expedited options are available upon request.
- Certifications
Q: What certifications do your products have?
All products come with CE/CB/CCC/KEMA certifications. We can arrange additional certifications (e.g., UL, RoHS) per your requirements—just inform us in advance.
- Custom Services
Q: Do you offer OEM/ODM services?
✓ OEM: Production based on your designs/specifications.
✓ ODM: Full customization from design to manufacturing.
Our engineering team ensures flexible solutions for unique needs.
- Quality Control
Q: How do you ensure product quality?
Strict ISO-compliant quality management system.
Optional production process photos/videos for transparency.
Multi-stage inspections before shipment to guarantee zero defects.
- Warranty & Support
Q: What is your warranty policy?
1-year free warranty (from delivery date).
Free replacement for defective parts (extra spare parts provided for bulk orders).
Lifetime technical support.
- Payment Methods Accepted: T/T (Bank Transfer), Western Union, PayPal. Other methods negotiable.
